Product Description

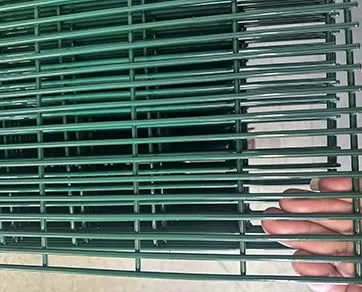

358 extra high security mesh fence made from a type of strong welded mesh panel with small mesh opening. It is extremely difficult to penetrate and difficult to attack using conventional hand tools. Has the features of anti-climbing and anti-cutting. The fence name 358 comes from its panel mesh opening 3" × 0.5" × 8 gauge - approximate to 76.2 mm × 12.7 mm × 4 mm mesh opening.
Features
Anti-climbing: more small openings, no toe or finger holds.
Anti-cut: robust wire and welded joints make cutting very difficult by bolt cutters and wire cutters.
High strength welded at each intersection.
Durable: covering Galfan and polymer powder coating ensure a long service life.
Mesh fencing specially configured to provide maximum visibility, especially used for emergency and electronic detection systems.
Specifications
358 mesh panel size
Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5") resistance welded well at each intersection.
Wire diameter: 4 mm horizontal wire and vertical Wire.
Weld strength: range 540–690 N/m2.
Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.
Colors: Green RAL 6005, or Black RAL 9005.
Installation: Overlapped 75 mm minimum at each post (See pictures 358M-05 and 358M-06) for securing with slotted clamp bars and M8 diameter bolts.
Fence posts
Material: high grade steel for maximum strength and rigidity.
Post section: 60 × 60 mm, 80 × 80 mm, 100 × 100 mm or 120 × 120 mm.
Post Plate thickness: 2.5/3.0/4.0/5.0 mm.
Finish: inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron ).
Colors: Green RAL 6005, or Black RAL 9005.
Post cap: metal caps or plastic cap.
Metal clips and clamps are hot dip galvanised then powder coating in green or black color.
FAQ
Q: Why us?
A:Save time, save money, professional, we have our own factory, professional foreign trade team, timely response rate, after-sales worry
Q: What are the terms of payment?
A:We usually use telegraphic transfer, L/C, D/P and Western Union.
Q: What is the lead time?
A:Usually within 5-15 days, custom orders may take longer.
Q: Can you provide free samples?
A:Yes, but usually the customer pays for the shipping. If you place an order, we will refund the delivery fee to you.
Q: Can I buy products with my own logo?
A:Yes! Accept any customization, but ask the customer to prepare the copyright etc.
